Description

Whitehall Products #E-22-S.

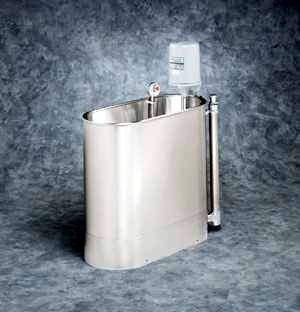

Whitehall E-22-S Stationary Whirlpool is recommended for treatment of the foot, ankle and leg, to below the knee, with better coverage and greater patient comfort.

Tank Capacity is 22 gallons.

Whirlpool Tank is 28”L x 15”W x 18”D and is seamless welded construction, fabricated from heavy gauge, type 304 stainless steel, polished to a satin finish. Tank rim is reinforced with a concealed stainless steel rod. Tank bottom is seamless, rounded coved design to minimize bacteria buildup. Tank is
also provided with an extended stainless steel skirt flush to the floor line to conceal internal drain piping.

A 2” Combination Drain and Overflow, and a Filler
Spout are provided. (See roughing-in dimensions on drawing).

Turbine Raising and Lowering Device permits adjustment of desired height and direction of water agitation towards the area of the body to be treated. It is spring balanced and provided with a locking device.

Turbine Assembly functions both as agitator and emptying device. It is equipped with Underwriters Laboratory and Canadian Standards Association list ed 1/2 HP jet pump motor protected with an ABS plastic shell, and automatic thermal overload protector, and lifetime-sealed bearings. All parts
contacting the water are stainless steel, chrome plated brass or bronze.

Thermometer is provided with a dual scale, adjustable calibration, and a stem inserts into a retainer to prevent rattle during whirlpool agitation.
