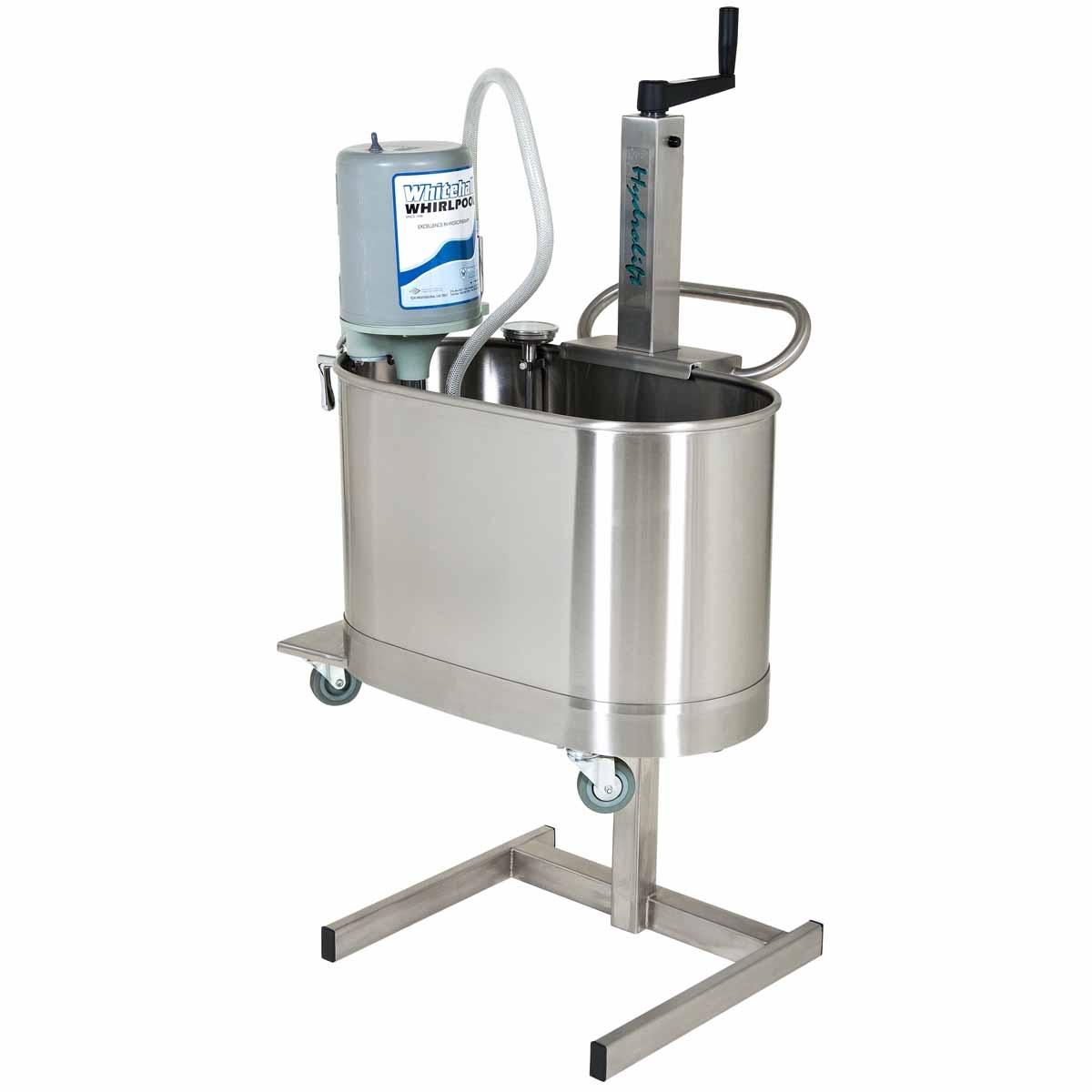

Whitehall Hydrolift HYL-22-M
Whitehall Hydrolift HYL-22-M.
The Whitehall HYL Series Hydrolift is recommended for the raising and lowering of a single Whitehall Hydrotherapy Whirlpool to treat lower and upper extremities. The Hydrolift is fully adjustable, raising the whirlpool rim to any height up to 32”, 36” or 38” depending on the model being specified. In normal operating conditions, the Hydrolift will remain as a stationary lift. However, both Hydrolift and whirlpool may be moved by lowering the whirlpool to the floor and using the whirlpool casters.
New or existing Whitehall Hydrotherapy Whirlpool models which can be used with the HYL series Hydrolift include Podiatry Whirlpool models P-10-M, P-15-M, E-22-M. Due to variable dimensions,indicate if whirlpool suffix option -SDP (Separate Drain Pump) is specified with whirlpool.
Hydrolift Frame, Clamp and Push Bar are constructed of heavy gauge, type 304 stainless steel, polished to a satin finish. The base of the frame sits underneath the whirlpool to prevent any possible obstacle. The frame is of a telescoping design and includes a tamper resistant clamp to secure the Hydrolift to the
whirlpool with a push bar to assist when moving.
Crank Handle to raise and lower whirlpool is easily adjustable and includes an integral brake lever to lock the handle and whirlpool in place. A tension adjuster is provided at the handle to regulate any changes in weight being lifted.
Questions? Email firstname.lastname@example.org for help!
|Dimensions||32.670 × 14.175 × 10 in|
